Spine

Thoraco lumbar spinal fixation system

MONOLOCK ULTRA

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.5 mm to 8 mm
(Range: 0.5 mm difference In diameter)
20 mm to 120 mm long (Range: 5 mm difference In length)
  1. Self-tapping screw tip-The distal cut on the shaft provides good initial grip and supports screw insertion.

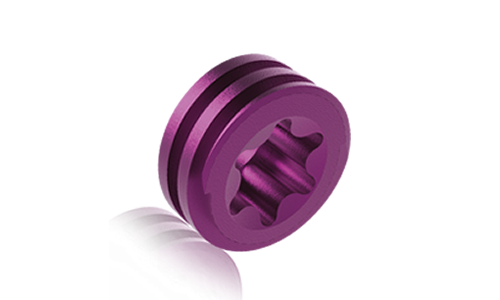

  2. Square Threaded Locking Cap geometry reduces risk of cross threading.
  3. Low profile screw head designed to enhance visualization of the anatomy.
Dia 4.5mm Dia 5.5mm Dia 6.5mm
25mm 25mm 25mm
30mm 30mm 30mm
35mm 35mm 35mm
40mm 40mm 40mm
45mm 45mm
50mm 50mm
55mm
60mm

Request More Information

Share

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.5 mm to 8 mm
(Range: 0.5 mm difference In diameter)
20 mm to 120 mm long (Range: 5 mm difference In length)
  1. Self-tapping screw tip-The distal cut on the shaft provides good initial grip and supports screw insertion.

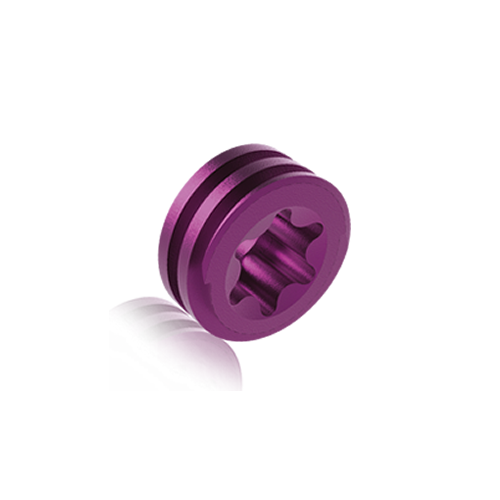

  2. Square Threaded Locking Cap geometry reduces the risk of cross-threading.
  3. 44° angulation. The high angulation of the Polyaxial screw head makes it easier to adapt the other system components to the patient’s individual anatomy.
  4. Low profile screw head designed to enhance visualization of the anatomy.
Dia 4.5mm Dia 5.5mm Dia 6.5mm Dia 7mm
25mm 25mm 30mm 35mm
30mm 30mm 35mm 40mm
35mm 35mm 40mm 45mm
40mm 40mm 45mm 50mm
45mm 50mm 55mm
50mm 55mm 60mm
60mm 65mm
70mm
75mm
80mm

Request More Information

Share

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.5 mm to 8 mm
(Range: 0.5 mm difference In diameter)
20 mm to 120 mm long (Range: 5 mm difference In length)
  1. Self-tapping screw tip-The distal cut on the shaft provides good initial grip and supports screw insertion.
  2. Square Threaded Locking Cap geometry reduces risk of cross threading.
  3. 44° angulation. The high angulation of the Polyaxial screw head makes it easier to adapt the other system components to the patient’s individual anatomy.
  4. Extra tab to get more reduction.
Dia 4.5mm Dia 5.5mm Dia 6.5mm
25mm 30mm 30mm
30mm 35mm 35mm
35mm 40mm 40mm
40mm 45mm 45mm
50mm 50mm
