Thoraco lumbar spinal fixation system

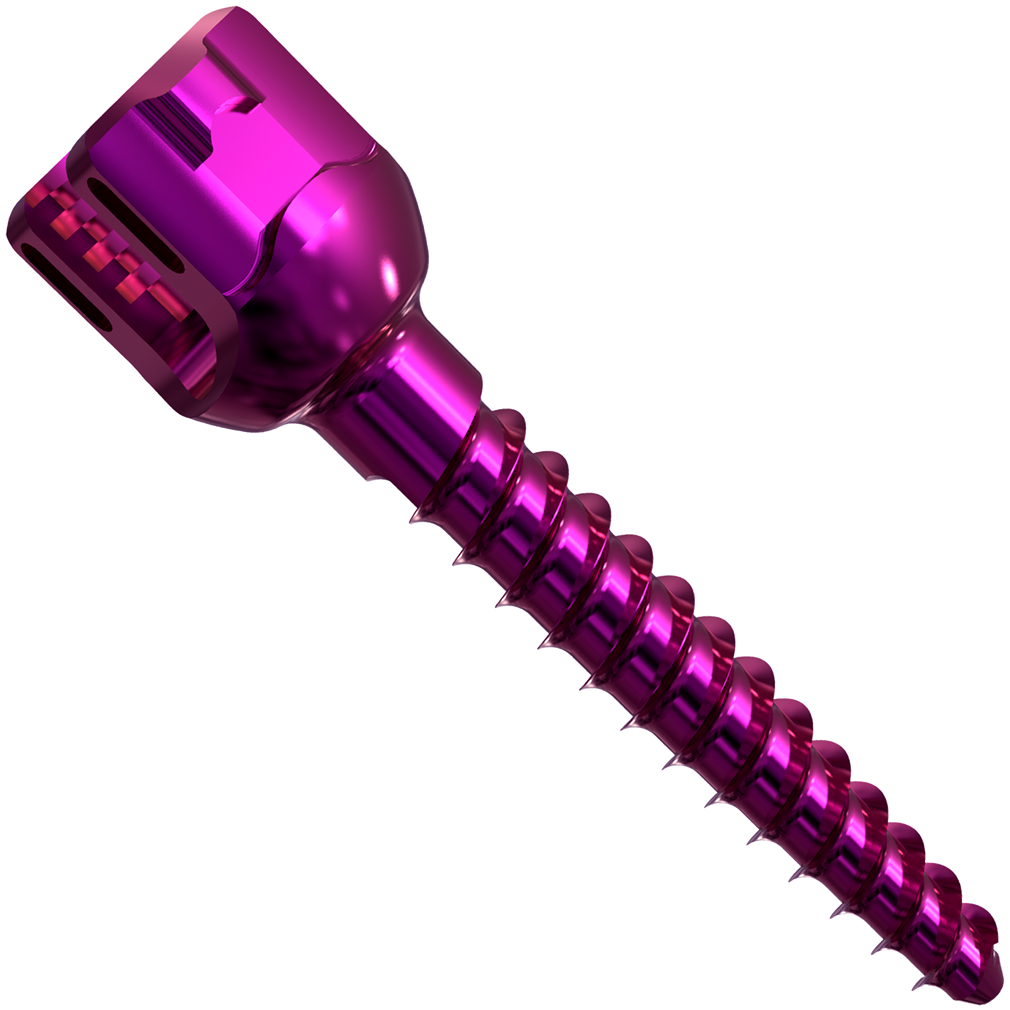

MONOLOCK DEFORMITY

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.5 mm to 8 mm
(Range: 0.5 mm difference In diameter)
20 mm to 120 mm long (Range: 5 mm difference In length)
  1. Self-tapping screw tip-The distal cut on the shaft provides good initial grip and supports screw insertion.
  2. Square Threaded Locking Cap geometry reduces risk of cross threading.
  3. Double-lead thread and an aggressive thread pitch promote rapid screw insertion and pull-out resistance, resulting in a more stable construct.
  4. Simple, Controlled De-rotation: provides an innovative posterior three-dimensional spinal deformity correction technique that utilizes the power of pedicle screw fixation.
Dia 4.5mm Dia 5.5mm Dia 6.5mm
25mm 30mm 30mm
30mm 35mm 35mm
35mm 40mm 40mm
40mm 45mm 45mm
50mm 50mm

Request More Information

    Share

    SPECIFICATION
    Dia/Holes/thickness Length/Other specs
    Dia 3.5 mm to 8 mm
    (Range: 0.5 mm difference In diameter)
    20 mm to 120 mm long (Range: 5 mm difference In length)
    1. Self-tapping screw tip-The distal cut on the shaft provides good initial grip and supports screw insertion.
    2. Square Threaded Locking Cap geometry reduces risk of cross threading.
    3. Double-lead thread and an aggressive thread pitch promote rapid screw insertion and pull-out resistance, resulting in a more stable construct.
    4. Simple, Controlled De-rotation: provides an innovative posterior three-dimensional spinal deformity correction technique that utilizes the power of pedicle screw fixation.
    5. 40° angulation. The high angulation of the Polyaxial screw head makes it easier to adapt the other system components to the patient’s individual anatomy.
    Dia 4.5mm Dia 5.5mm Dia 6.5mm Dia 7.5mm
    25mm 30mm 30mm 30mm
    30mm 35mm 35mm 35mm
    35mm 40mm 40mm 40mm
    40mm 45mm 45mm 45mm
    50mm 50mm 50mm
    55mm 60mm
    60mm 70mm
    80mm
    90mm
    100mm
    110mm
    120mm

    Request More Information

      Share

      SPECIFICATION
      Dia/Holes/thickness Length/Other specs
      Dia 3.5 mm to 8 mm
      (Range: 0.5 mm difference In diameter)
      20 mm to 120 mm long (Range: 5 mm difference In length)
      1. Self-tapping screw tip-The distal cut on the shaft provides good initial grip and supports screw insertion.
      2. Square Threaded Locking Cap geometry reduces the risk of cross-threading.
      3. Double-lead thread and an aggressive thread pitch promote rapid screw insertion and pull-out resistance, resulting in a more stable construct.
      4. Simple, Controlled De-rotation: provides an innovative posterior three-dimensional spinal deformity correction technique that utilizes the power of pedicle screw fixation.
      5. 40° angulation. The high angulation of the Polyaxial screw head makes it easier to adapt the other system components to the patient’s individual anatomy.
      6. Extra tab to get more reduction.
      Dia 4.5mm Dia 5.5mm Dia 6.5mm
      25mm 30mm 30mm
      30mm 35mm 35mm
      35mm 40mm 40mm
      40mm 45mm 45mm
      50mm 50mm

      Request More Information

        Share

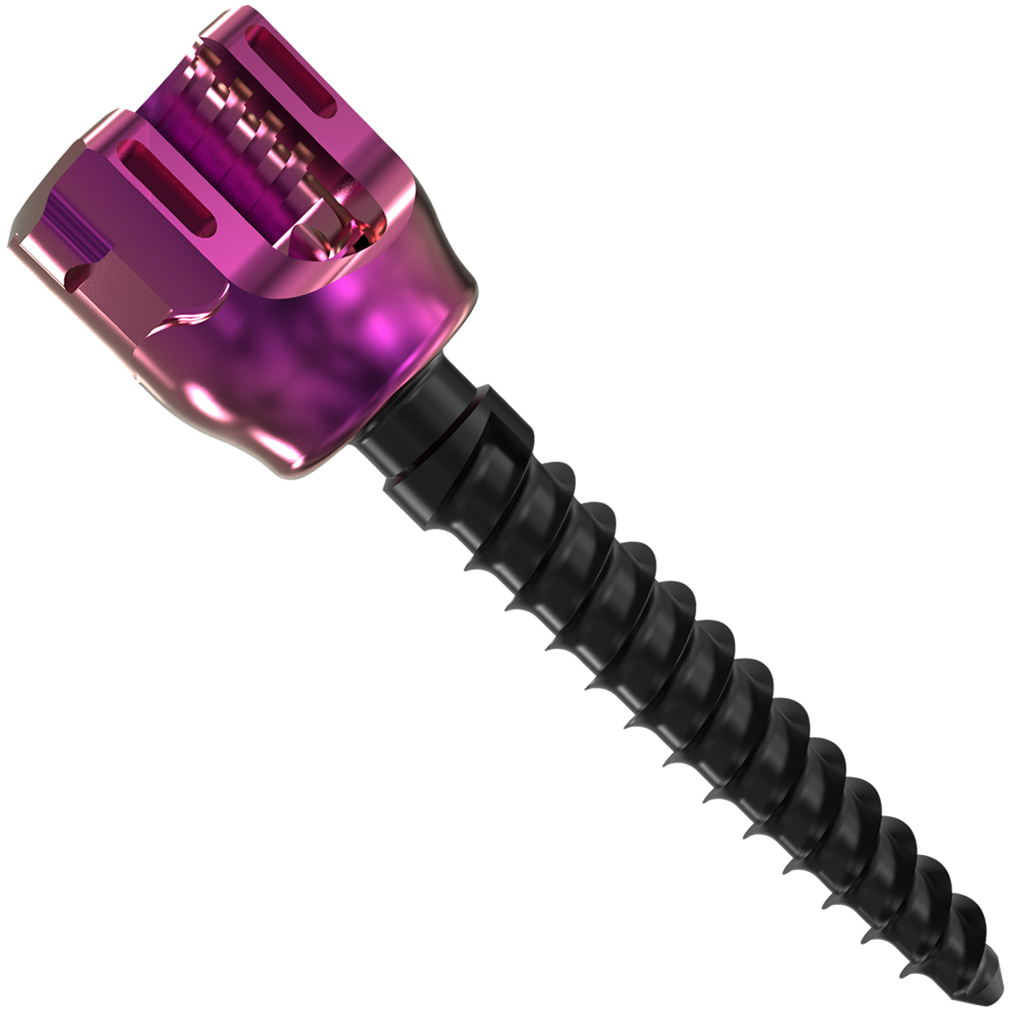

        SPECIFICATION
        Dia/Holes/thickness Length/Other specs
        Dia 3.5 mm to 8 mm
        (Range: 0.5 mm difference In diameter)
        20 mm to 120 mm long (Range: 5 mm difference In length)
        1. Self-tapping screw tip-The distal cut on the shaft provides good initial grip and supports screw insertion.
        2. Square Threaded Locking Cap geometry reduces risk of cross threading.
        3. Double-lead thread and an aggressive thread pitch promote rapid screw insertion and pull-out resistance, resulting in a more stable construct.
        4. Simple, Controlled De-rotation: provides an innovative posterior three-dimensional spinal deformity correction technique that utilizes the power of pedicle screw fixation.

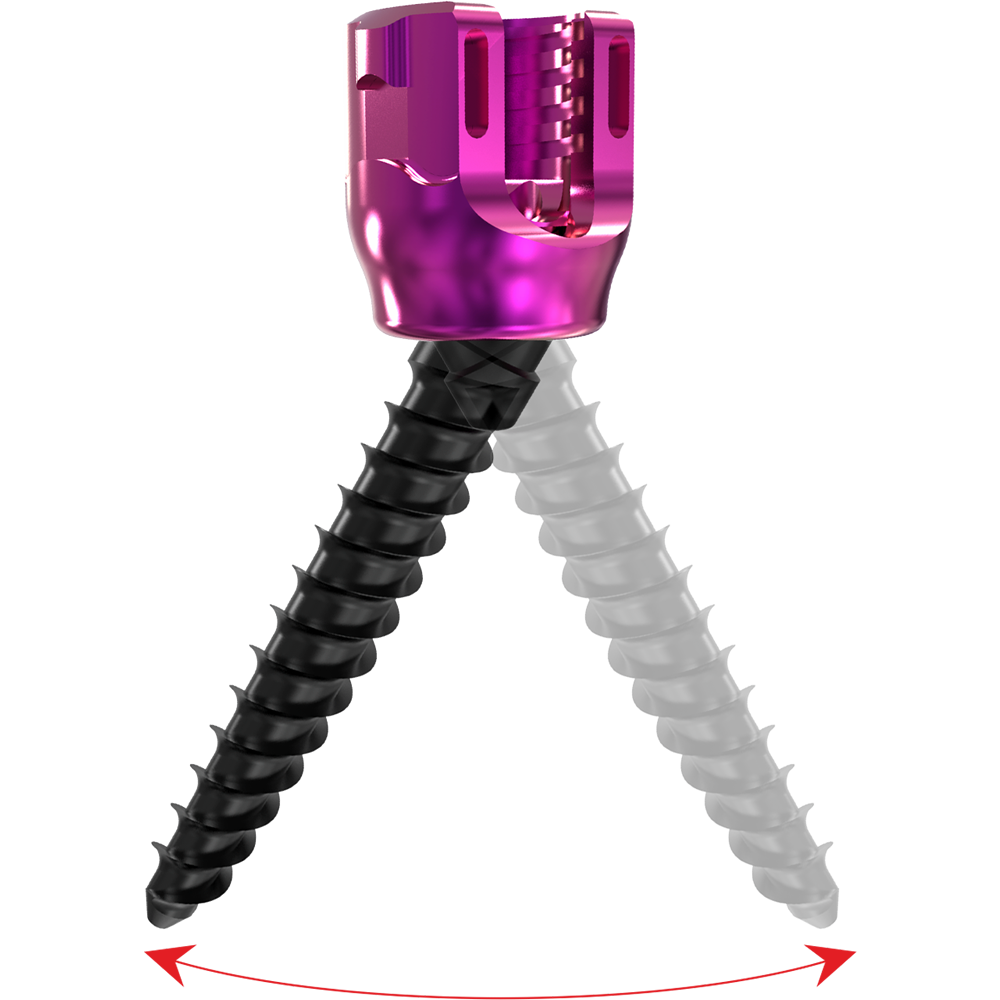

        5. Single axis rotation: To restrict motion in the Medio lateral or medial to lateral.
        6. 40° angulation. The high angulation of the Polyaxial screw head makes it easier to adapt the other system components to the patient’s individual anatomy.
        Dia 4.5mm Dia 5.5mm Dia 6.5mm
        25mm 30mm 30mm
        30mm 35mm 35mm
        35mm 40mm 40mm
        40mm 45mm 45mm
        50mm 50mm
