Thoraco lumbar spinal fixation system

MONOLOCK DTAP SQ

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.5 mm to 8 mm
(Range: 0.5 mm difference In diameter)
20 mm to 120 mm long (Range: 5 mm difference In length)
  1. Self-tapping screw tip-The distal cut on the shaft provides good initial grip and supports screw insertion.
  2. Square Threaded Locking Cap geometry reduces risk of cross threading.
  3. 44° angulation. The high angulation of the Polyaxial screw head makes it easier to adapt the other system components to the patient’s individual anatomy.
  4. Double-lead thread and an aggressive thread pitch promote rapid screw insertion and pull-out resistance, resulting in a more stable construct.
Dia 4.5mm Dia 5.5mm Dia 6.5mm Dia 7mm
25mm 25mm 25mm 40mm
30mm 30mm 30mm 45mm
35mm 35mm 35mm 50mm
40mm 40mm 40mm 55mm
45mm 45mm 60mm
50mm 50mm 65mm
55mm 70mm
60mm 80mm
90mm

Request More Information

Share

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 5 mm to 10 mm (Range: 0.5 mm difference In outer diameter ) 3.0mm to 10 mm long

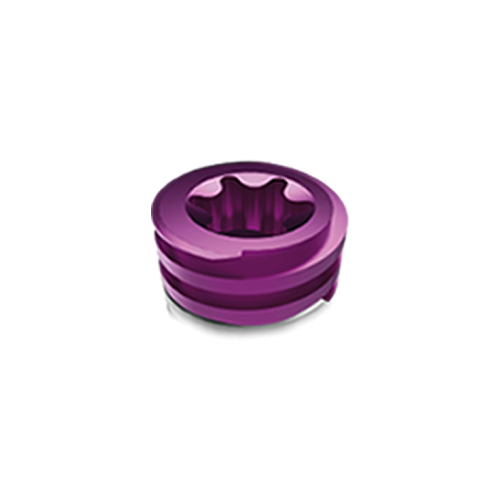

  1. Star Profile To transfer a higher torque than the classical screw profiles without damaging screw driver or screw.
  2. Square Threaded Locking Cap geometry reduces risk of cross threading.

Request More Information

Share

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 5 mm to 10 mm (Range: 0.5 mm difference In outer diameter ) 3.0mm to 10 mm long

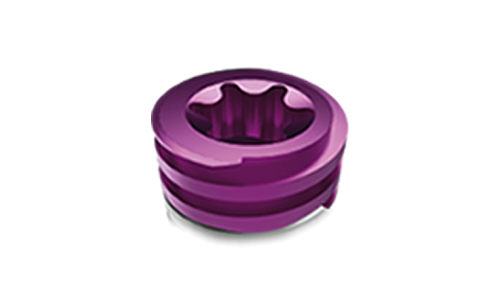

  1. Star Profile To transfer a higher torque than the classical screw profiles without damaging screw driver or screw.
  2. Square Threaded Locking Cap geometry reduces risk of cross threading.
  3. Hexagonal shape projection help to break off mechanism.
