Spine

Thoraco lumbar spinal fixation system

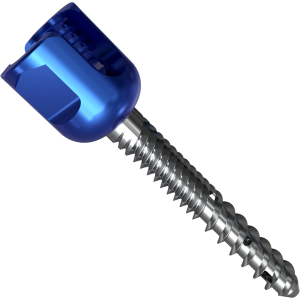

MONOLOCK OSTEO/ FENESTRATED SQ

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.5 mm to 8 mm
(Range: 0.5 mm difference In diameter)
20 mm to 120 mm long (Range: 5 mm difference In length)
  1. Double-lead thread for cancellous bone.
  2. Quad lead thread for cortical bone.
  3. Optimized Tip – Self-tapping, self-centering tip allows for insertion with or without tapping.
  4. Square Threaded Locking Cap geometry reduces risk of cross threading.
  5. 44° angulation. The high angulation of the Polyaxial screw head makes it easier to adapt the other system components to the patient’s individual anatomy.
Dia 5.5mm Dia 6.5mm Dia 7mm
35mm 35mm 35mm
40mm 40mm 40mm
45mm 45mm 45mm
50mm 50mm 50mm

Request More Information

Share

SPECIFICATION
Dia/Holes/thickness Length/Other specs
Dia 3.5 mm to 8 mm
(Range: 0.5 mm difference In diameter)
20 mm to 120 mm long (Range: 5 mm difference In length)
  1. Double-lead thread for cancellous bone.
  2. Quad lead thread for cortical bone.
  3. Optimized Tip – Self-centering tip allows for insertion with or without tapping.
  4. Square Threaded Locking Cap geometry reduces risk of cross threading.
  5. Large space allow for optimal cement delivery and screw fixation.
  6. 44° angulation. The high angulation of the Polyaxial screw head makes it easier to adapt the other system components to the patient’s individual anatomy.
Dia 5.5mm Dia 6.5mm Dia 7mm
35mm 35mm 35mm
40mm 40mm 40mm
45mm 45mm 45mm
50mm 50mm 50mm
