| Holes | Length |
| 6 | 168mm |
| 8 | 204mm |
| 10 | 240mm |
Trauma
LCP LOCKING COMPRESSION PLATE SYSTEM
ELBOW & HUMERUS SYSTEM
LCP Extra-Articular Distal Humerus plate 3.5
Note : Also available in stainless steel (SS)
LCP Distal Humerus Plate, Dorsolateral With Support 2.7/3.5
| Holes | Length |
| 3 | 66mm |
| 5 | 92mm |
| 7 | 118mm |
Note : Also available in stainless steel (SS)
LCP Distal Humerus Plate, Dorsolateral 2.7/3.5
| Holes | Length |
| 3 | 66mm |
| 5 | 92mm |
| 7 | 118mm |
Note : Also available in stainless steel (SS)
LCP Distal Humerus Plate, Medial 2.7/3.5
| Holes | Length |
| 3 | 60mm |
| 5 | 80mm |
| 7 | 111mm |
Note : Also available in stainless steel (SS)
LCP Olecranon Plate 3.5/4.0
| Holes | Length |
| 2 | 83mm |
| 4 | 113mm |
| 6 | 139mm |
| 8 | 165mm |
| Holes | Length |
| 10 | 191mm |
| 12 | 217mm |
Note : Also available in stainless steel (SS)
LCP Proximal Humeral plate 3.5 Short (S) / Long (L)
| Holes | Length |
| 3 | 90mm |
| 5 | 114mm |
| 3 | 90mm |
| 5 | 114mm |
Note : Also available in stainless steel (SS)
CLAVICLE SYSTEM
LCP Superior Anterior Clavicle Plate 3.5
| Holes | Length |
| 5 | 95mm |
| 6 | 111mm |
| 7 | 121mm |
Note : Available in stainless steel (SS) with Lateral extension
TIBIA SYSTEM
One-Third Tubular Locking Plate 3.5
| Holes | Length |
| 5 | 64mm |
| 6 | 76mm |
| 7 | 88mm |
| 8 | 100mm |
| 9 | 112mm |
| 10 | 124mm |
| 12 | 148mm |
Note : Also available in stainless steel (SS)
Locking Compression Plate
| Holes | Length |
| 6 | 85mm |
| 7 | 98mm |
| 8 | 111mm |
| 9 | 124mm |
| 10 | 137mm |
| 12 | 163mm |
| 14 | 189mm |
Note : Also available in stainless steel (SS)
LCP Reconstruction Plate 3.5
| Holes | Length |
| 5 | 58mm |
| 6 | 70mm |
| 7 | 82mm |
| 8 | 94mm |
| 10 | 106mm |
| Holes | Length |
| 12 | 118mm |
| 14 | 130mm |
Note : Also available in stainless steel (SS)

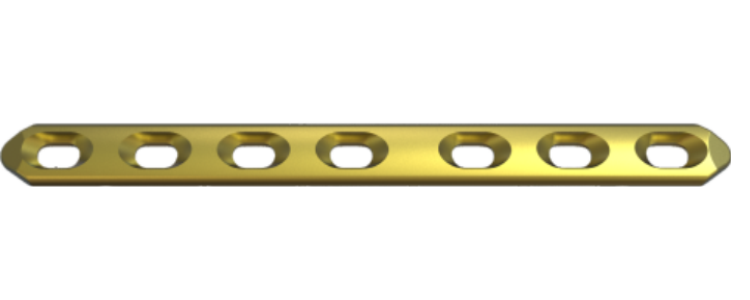

DCP Plate
| Holes | Length |
| 5 | 90mm |
| 6 | 105mm |
| 7 | 120mm |
| 8 | 135mm |
| 10 | 165mm |
Note : Also available in stainless steel (SS)
LCP Postero-medial Proximal Tibia Plate 3.5
| Holes | Length |
| 1 | 68.5mm |
| 2 | 79.5mm |
| 4 | 105.5mm |
| 6 | 131.5mm |
| Holes | Length |
| 8 | 157.5mm |
| 10 | 183mm |
Note : Also available in stainless steel (SS)
LCP Proximal Lateral Tibia Plate 3.5
| Holes | Length |
| 6 | 104mm |
| 8 | 128mm |
| 10 | 152mm |
| 12 | 176mm |
Note : Also available in stainless steel (SS)
LCP Medial Proximal Tibia Plate 3.5
| Holes | Length |
| 4 | 93mm |
| 6 | 119mm |
| 8 | 145mm |
| 10 | 171mm |
| 12 | 197mm |
Note : Also available in stainless steel (SS)
LCP Low Bend Medial Distal Tibia Plate 3.5
| Holes | Length |
| 4 | 108.5mm |
| 6 | 134.5mm |
| 8 | 161.5mm |
| 10 | 187.5mm |
| 12 | 213.5mm |
| Holes | Length |
| 14 | 239.50mm |
Note : Also available in stainless steel (SS)
LCP Anterolateral Distal Tibia Plate 3.5
| Holes | Length |
| 5 | 80mm |
| 7 | 106mm |
| 9 | 132mm |
| 11 | 158mm |
| 13 | 184mm |
Note : Also available in stainless steel (SS)
LCP Distal tibia plate, 4.5, Left/Right
| Holes | Length |
| 3 | 100mm |
| 4 | 118mm |
| 5 | 136mm |
| 6 | 154mm |
| 7 | 172mm |
| Holes | Length |
| 8 | 190mm |
| 9 | 208mm |
| 10 | 226mm |
| 11 | 244mm |
| 12 | 262mm |
Note : Also available in stainless steel (SS)
LCP Proximal Lateral Distal Tibia plate 4.5/5.0
| Holes | Length |
| 5 | 140mm |
| 7 | 180mm |
| 9 | 220mm |
| 11 | 260mm |
| 13 | 300mm |
Note : Also available in stainless steel (SS)
LOCKING SCREWS
Ø2.7 locking screw Self tapping
| Length |
| 8mm |
| 10mm |
| 12mm |
| 14mm |
| 16mm |
| 18mm |
| 20mm |
| 22mm |
| 24mm |
| 26mm |
| 28mm |
| 30mm |
| 32mm |
| 34mm |
| 36mm |
Ø3.5 locking screw Self tapping
| Length |
| 8mm |
| 10mm |
| 12mm |
| 14mm |
| 16mm |
| 18mm |
| 20mm |
| 22mm |
| 24mm |
| 26mm |
| 28mm |
| 30mm |
| 32mm |
| 34mm |
| 36mm |
| 38mm |
| 40mm |
| 42mm |
| 44mm |
| 46mm |
| 48mm |
| 50mm |
| 52mm |
| 54mm |
| 56mm |
| 58mm |
| 60mm |
| 65mm |
| 70mm |
| 75mm |
| 80mm |
Ø3.5 Cortex screw Self tapping
| Length |
| 8mm |
| 10mm |
| 12mm |
| 14mm |
| 16mm |
| 18mm |
| 20mm |
| 22mm |
| 24mm |
| 26mm |
| 28mm |
| 30mm |
| 32mm |
| 34mm |
| 36mm |
| 38mm |
| 40mm |
| 42mm |
| 44mm |
| 46mm |
| 48mm |
| 50mm |
| 52mm |
| 54mm |
| 56mm |
| 58mm |
| 60mm |
| 65mm |
| 70mm |
| 75mm |
| 80mm |
Ø4.00mm Locking head cancellous screw
| Length |
| 14mm |
| 16mm |
| 18mm |
| 20mm |
| 22mm |
| 24mm |
| 26mm |
| 28mm |
| 30mm |
| 32mm |
| 34mm |
| 36mm |
| 38mm |
| 40mm |
| 42mm |
| 44mm |
| 46mm |
| 48mm |
| 50mm |
| 55mm |
| 60mm |
| 65mm |
| 70mm |
Ø5.00mm Locking screw - Self tapping
| Length |
| 14mm |
| 16mm |
| 18mm |
| 20mm |
| 22mm |
| 24mm |
| 26mm |
| 28mm |
| 30mm |
| 32mm |
| 34mm |
| 36mm |
| 38mm |
| 40mm |
| 42mm |
| 44mm |
| 46mm |
| 48mm |
| 50mm |
| 55mm |
| 60mm |
| 65mm |
| 70mm |
| 75mm |
| 80mm |
| 85mm |
| 90mm |
| 95mm |
| 100mm |
Ø 4.50mm Cortex Screw
| Length |
| 14mm |
| 16mm |
| 18mm |
| 20mm |
| 22mm |
| 24mm |
| 26mm |
| 28mm |
| 30mm |
| 32mm |
| 34mm |
| 36mm |
| 38mm |
| 40mm |
| 42mm |
| 44mm |
| 46mm |
| 48mm |
| 50mm |
| 52mm |
| 54mm |
| 56mm |
| 58mm |
| 60mm |
| 62mm |
| 64mm |
| 66mm |
| 68mm |
| 70mm |
| 72mm |
| 74mm |
| 76mm |
| 78mm |
| 80mm |
Ø4.0 Cancellous Screw Long Thread
| Length |
| 14mm |
| 16mm |
| 18mm |
| 20mm |
| 22mm |
| 24mm |
| 26mm |
| 28mm |
| 30mm |
| 32mm |
| 34mm |
| 36mm |
| 38mm |
| 40mm |
| 45mm |
| 50mm |
| 55mm |
Ø4.0 Cancellous Screw Short Thread
| Length |
| 14mm |
| 16mm |
| 18mm |
| 20mm |
| 22mm |
| 24mm |
| 26mm |
| 28mm |
| 30mm |
| 35mm |
| 40mm |
| 45mm |
| 50mm |
| 55mm |
| 60mm |
Ø6.5 Cancellous Screw Full Thread
| Length |
| 25mm |
| 30mm |
| 35mm |
| 40mm |
| 45mm |
| 50mm |
| 55mm |
| 60mm |
| 65mm |
| 70mm |
| 75mm |
| 80mm |
| 85mm |
| 90mm |
| 95mm |
| 100mm |
Ø6.5 Cancellous Screw 32mm Thread
| Length |
| 40mm |
| 45mm |
| 50mm |
| 55mm |
| 60mm |
| 65mm |
| 70mm |
| 75mm |
| 80mm |
| 85mm |
| 90mm |
| 95mm |
| 100mm |
Ø6.5 Cancellous Screw 16mm - Thread
| Length |
| 40mm |
| 45mm |
| 50mm |
| 55mm |
| 60mm |
| 65mm |
| 70mm |
| 75mm |
| 80mm |
| 85mm |
| 90mm |
| 95mm |
| 100mm |
