- Easy insertion and extraction of nail.
- Multiple locking options

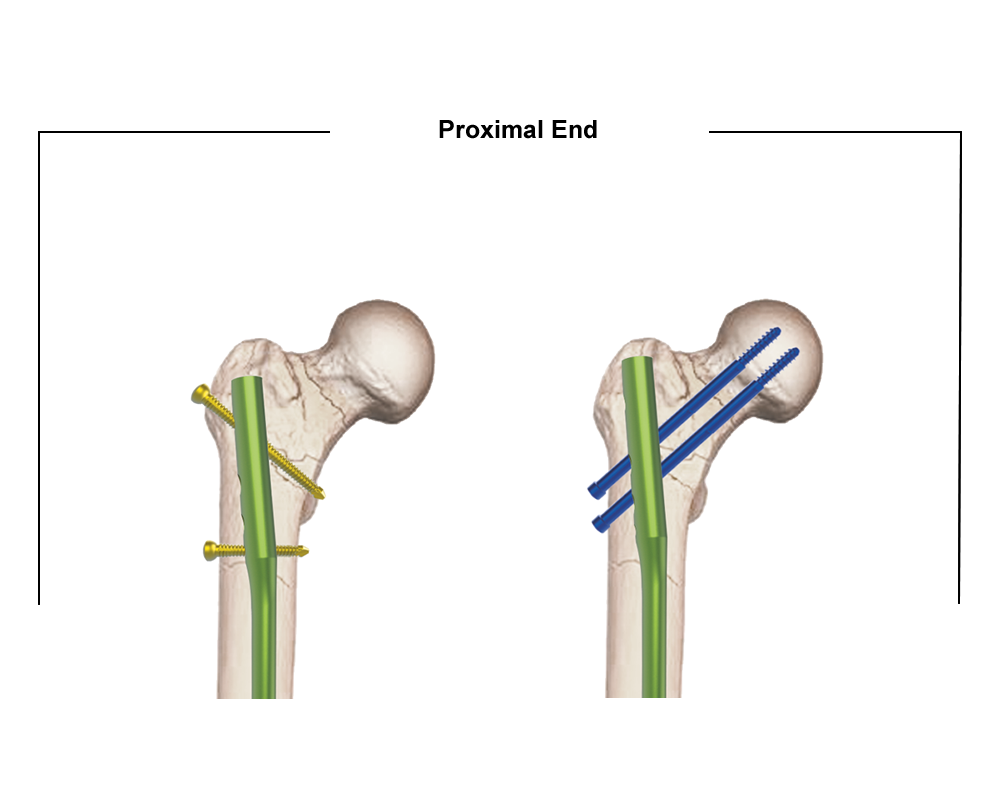

- Unique four-hole proximal locking conficuration allows femoral or Recon locking modes in one nail
- 5° lateral offset for minimally invasive trochanteric entry
- Neck shaft angle of 130°
- One antegrade locking option allows static locking & 1static locking option corresponds to the distal position of the standard locking slot.
- Two Mediolateral distal locking options including one dynamic slot
- Nail available in 9mm, 10mm, 11mm and 12mm diameters with size ranging from 360mm to 440mm increment for each diameter.
Trauma
FEMORAL NAILING SYSTEM
Features
Nailing system with streamlined instrumentation.
Screws:
- Ø6.5mm Hip screws for Recon locking
- Ø5.0mm Angular stable locking screw
Standard locking
-Femoral shaft fractures

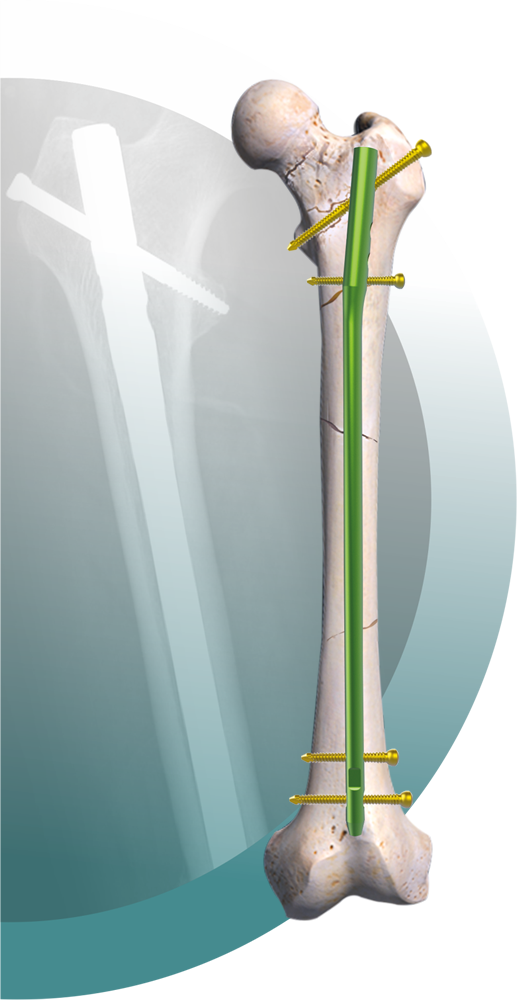

Recon locking
– Combined femoral shaft and neck
Multiple locking options
-Distal dynamization
-Antirotation stability
Right & Left Nail
- Dia : 9 / 10 / 11 / 12
- Length : 360 / 380 / 400 / 420 / 440
- Material : Ti-6Al-4V ELI (Titanium)
- Diameters : 9 – 12 mm (1 mm increments)
- Colors : 9 – 12 mm (Pink-right & Green-left )
- Lengths : 360 – 440 mm (20 mm increments)
- Cannulation : All nails are cannulated.

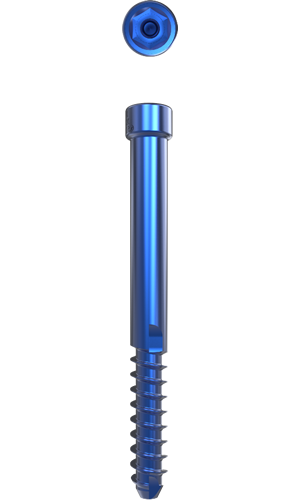

Hip screws Ø6.5mm
- Material : Ti-6Al-4V ELI (Titanium)
- Color : Blue
- Lengths : 65 – 120 mm (5 mm increments)
- Design : 6.5 mm shaft diameter / 4.5 mm core diameter Thread length 26 mm Self-tapping, blunt tip

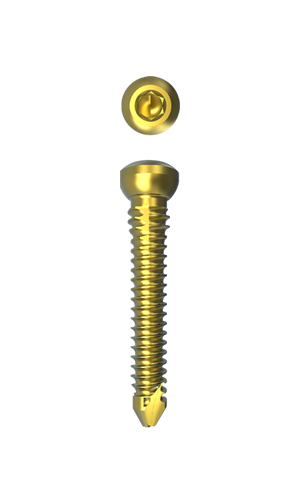

Angular Stable Locking Screw Ø5.0mm
- Material : Ti-6Al-4V ELI (Titanium)
- Color : Gold
- Lengths : 28 – 60 mm (2 mm increments) 60 – 100 mm (5 mm increments)
- Design : Dual diameter 5.6 / 4.8mm core diameter Improved fixation in poor quality bone Dual diameter design provides better purchase when reamed near cortex Fully threaded, Self-tapping, blunt tip
